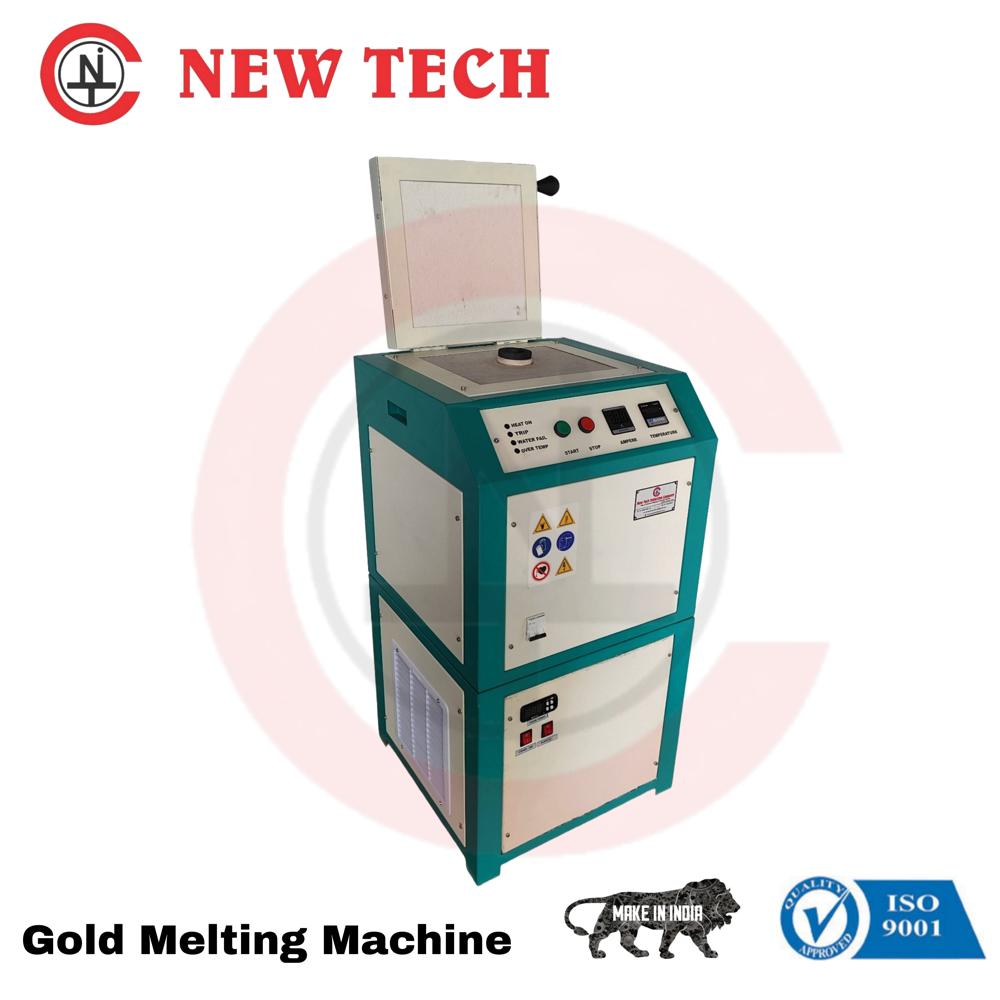

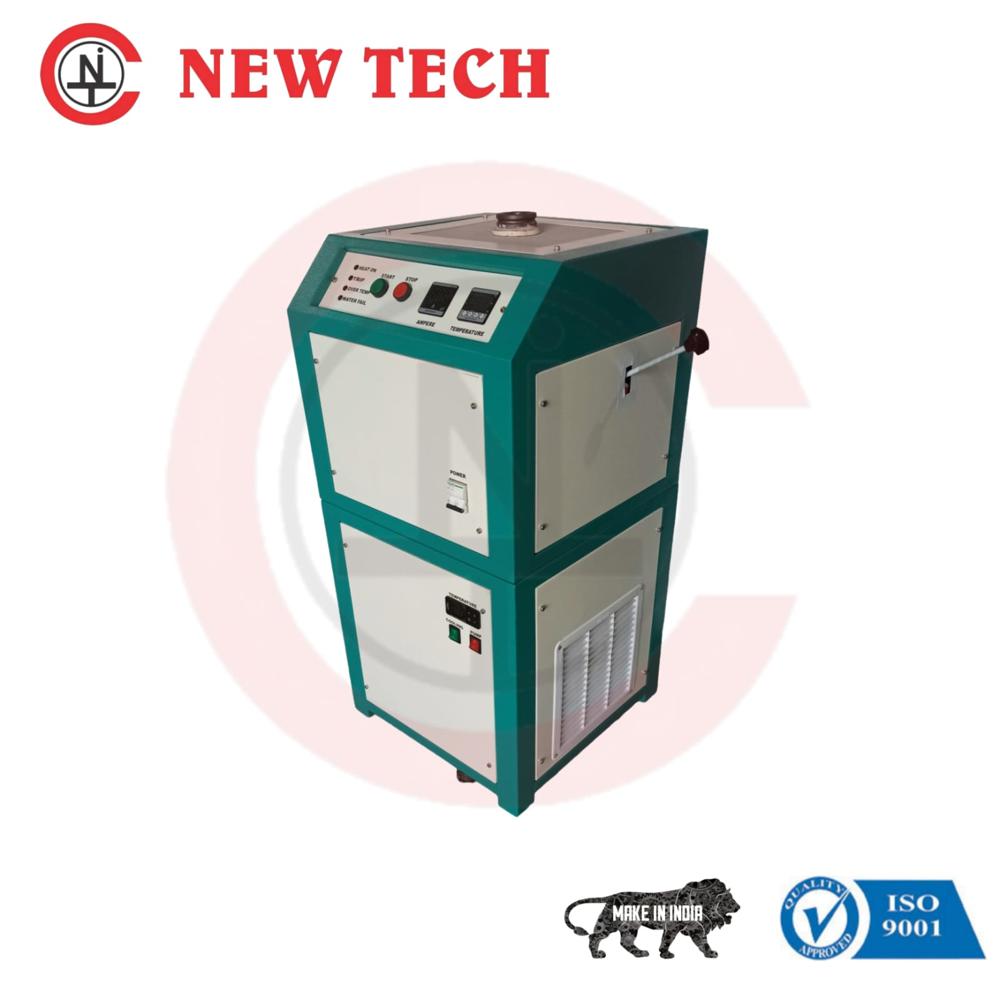

Gold Melting Machine About
Gold Melting Induction Furnace we offer is designed for making the gold jewellery melting and producing easier and faster. It is powered by electric energy, and works automatically and efficiently due to its hi-tech components and melting mechanisms. The furnace is easy to install & operate due to its easy functions and ideal dimension & weight.
Technical Details:
- Melting Material - Gold
- Brand - New Tech
- Technology - IGBT
- Max Temperature - 1200 degree
- Melting Time - 6-8 min
- Absorbed Power - 3.5 Kw
- Temperature Measurement - K type
- Cooling Water Temperature - 20 to 30 degree
- Water Pressure - 1 bar Maximum
- Water Flow - 10 Lit/ Min
- Weight ( with chilling unit ) - 120 Kg
Specification
|
Frequency
|
50 Hz
|
|
Phase
|
Single Phase
|
|
Material Loading Capacity
|
500 GM
|
|
Automation Grade
|
Semi-Automatic
|
|
Input Voltage (V)
|
220V
|
|
Type Of Furnace
|
Fix
|
|
Power Source
|
Electric
|
Efficient Gold Smelting for ShowroomsThis gold melting machine offers jewellers rapid, reliable melting for batches from 250 gm up to 500 gm. It integrates automatic operation with water cooling to ensure steady performance and safety during continuous usage. With its 6-minute smelting time, it speeds up gold processing, helping businesses increase their productivity and streamline workflow.
Advanced Safety and User Comfort FeaturesThe built-in cooling system minimizes overheating risks, while automatic controls facilitate smooth operation without the need for manual intervention. This combination of technology provides a trouble-free smelting experience, even for users who do not require computerized operation. Its sturdy build and thoughtful design cater to professional demands.
FAQ's of Gold Melting Machine 250 gm to 500 gm:
Q: How does the water cooling system benefit the gold melting process?
A: The integrated water cooling system helps regulate the machine's temperature, protecting components from overheating during intense smelting sessions. This ensures consistent performance and prolongs the lifespan of the equipment, making it reliable for frequent use in jewellery showrooms.
Q: What is the smelting time, and how much gold can the machine process at once?
A: This gold melting machine can process up to 0.5 kg (500 grams) of gold in each cycle, with a rapid smelting time of just 6 minutes, allowing for frequent batch processing and reduced downtime.
Q: When is this gold melting machine best utilized in jewellery showrooms?
A: This machine is ideal for use during high-volume periods or when fast turnaround is required for creating or recycling gold jewellery pieces. Its efficient and automatic operation suits daily or repeated melting needs in professional environments.
Q: Where is this gold melting machine manufactured and supplied from?
A: The machine is manufactured, exported, and supplied directly from India, ensuring fast access to support and replacement parts for Indian jewellery businesses.
Q: What is the heating process used in this gold melting machine?
A: The machine uses an induction heating method, operating at a frequency of 10 kHz. This provides uniform and quick heating, reaching a maximum working temperature of 1150C, which is optimal for achieving pure gold melts.
Q: Is the use of this gold melting machine complicated?
A: Despite its advanced features, the machine is straightforward to operate due to its automatic controls and simple single-phase power supply. It does not require computerized management, making it suitable even for operators with basic technical knowledge.
Q: What warranty and after-sales support are available for this machine?
A: The gold melting machine comes with a one-year warranty. As it is supplied by manufacturers and exporters in India, customers have convenient access to technical support and servicing throughout the warranty period.
